基础参数
①额定电压：380/440VAC
②工作频率：50/60Hz
③气候类型：25/85/21
④耐电压： L-N：1500VDC/L-E：2250VDC
⑤额定电流 ：5~1600A
⑥设计依据：GB 15288/GB15287-2008、UL1283、IEC/EN 60939
典型应用
储能、半导体、UPS、开关电源、通讯设备、伺服电机、变频器、变频电源、自动化电子设备、三相电机风能、太阳能逆变系统、逆变器、空调、水冷、电梯、电力供应、注塑机。
电路结构图
①三相四线滤波器通用型
②三相四线高性能型滤波器

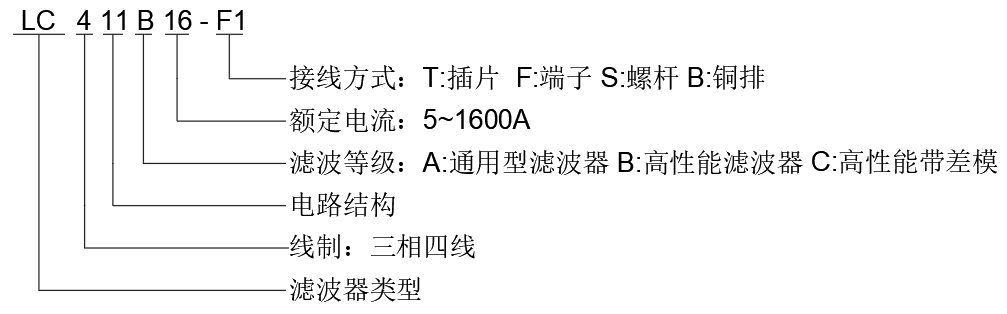

三相四线产品命名规则
典型插入损耗图
①三相四线通用型
②三相四线高性能
三相四线产品选型表
三相四线高性能滤波器尺寸
| 产品型号 | 图号 | 适配功率(KW) | 额定电流 | 尺寸Dimension(±2) | ||||||
| A | B | C | D | H | I | J | ||||
| 三相四线通用型滤波器尺寸 | ||||||||||
| LC-411A5-T1 |  | 0.75 | 5 | 75 | 86.5 | 51 | / | 38 | / | 4.5 |
| LC-411A10-T1 | 3-4 | 10 | 75 | 86.5 | 51 | / | 38 | / | 4.5 | |
| LC-411A16-T1 | 5.5 | 16 | 75 | 86.5 | 51 | / | 38 | / | 4.5 | |
| LC-411A20-F1 |  | 7.5 | 20 | 184 | 202 | 70 | 86 | 58 | M4 | 6.5*9.5 |
| LC-411A36-F1 | 11-15 | 36 | 200 | 220 | 95 | 115 | 90 | M6 | 6.5*9.5 | |
| LC-411A50-F1 | 18.5-22 | 50 | 200 | 220 | 95 | 115 | 90 | M6 | 6.5*9.5 | |
| LC-411A65-F1 | 30 | 65 | 200 | 220 | 95 | 115 | 90 | M6 | 6.5*9.5 | |
| LC-411A80-S1 |  | 37 | 80 | 243 | 284 | 96 | 180 | 90 | M8 | 6.5*9.5 |
| LC-411A100-S1 | 45 | 100 | 243 | 284 | 96 | 180 | 90 | M8 | 6.5*9.5 | |
| LC-411A120-S1 | 55 | 120 | 243 | 284 | 96 | 180 | 90 | M8 | 6.5*9.5 | |
| LC-411A150-S1 | 75 | 150 | 243 | 294 | 96 | 180 | 90 | M10 | 6.5*9.5 | |
| LC-411A200-S1 | 90 | 200 | 243 | 294 | 96 | 180 | 90 | M10 | 6.5*9.5 | |
| LC-411A250-B3 |  | 110 | 250 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 |
| LC-411A300-B3 | 132 | 300 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 | |
| LC-411A400-B3 | 160-200 | 400 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 | |
| LC-411A600-B3 | 250-310 | 600 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 | |
| LC-411A900-B3 | 500 | 900 | 165 | 445 | 325 | 340 | 150 | M8 | 6.5 | |
| LC-411A1000-B3 | 560 | 1000 | 165 | 445 | 325 | 340 | 150 | M8 | 6.5 | |
| LC-411A1600-B3 | 900 | 1600 | 245 | 580 | 330 | 350 | 180 | M12 | 8.5 | |
三相四线高性能滤波器尺寸
| 产品型号 | 图号 | 适配功率(KW) | 额定电流 | 尺寸Dimension(±2) | ||||||
| A | B | C | D | H | I | J | ||||
| LC-411B5-F1 |  | 0.75 | 5 | 184 | 202 | 70 | 86 | 58 | M4 | 6.5*9.5 |
| LC-411B10-F1 | 3-4 | 10 | 184 | 202 | 70 | 86 | 58 | M4 | 6.5*9.5 | |
| LC-411B16-F1 | 5.5 | 16 | 184 | 202 | 70 | 86 | 58 | M4 | 6.5*9.5 | |
| LC-411B20-F1 | 7.5 | 20 | 184 | 202 | 70 | 86 | 58 | M4 | 6.5*9.5 | |
| LC-411B36-F1 | 11-15 | 36 | 243 | 260 | 96 | 125 | 90 | M6 | 6.5*9.5 | |
| LC-411B50-F1 | 18.5-22 | 50 | 243 | 260 | 96 | 125 | 90 | M6 | 6.5*9.5 | |
| LC-411B65-F1 | 30 | 65 | 243 | 260 | 96 | 125 | 90 | M6 | 6.5*9.5 | |
| LC-411B80-S1 |  | 37 | 80 | 354 | 384 | 155 | 185 | 90 | M8 | 6.5*9.5 |
| LC-411B100-S1 | 45 | 100 | 354 | 384 | 155 | 185 | 90 | M8 | 6.5*9.5 | |
| LC-411B120-S1 | 55 | 120 | 354 | 384 | 155 | 185 | 90 | M8 | 6.5*9.5 | |
| LC-411B150-S1 | 75 | 150 | 354 | 394 | 155 | 185 | 90 | M10 | 6.5*9.5 | |
| LC-411B200-S1 | 90 | 200 | 354 | 394 | 155 | 185 | 90 | M10 | 6.5*9.5 | |
| LC-411B250-B3 |  | 110 | 250 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 |
| LC-411B300-B3 | 132 | 300 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 | |
| LC-411B400-B3 | 160-200 | 400 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 | |
| LC-411B600-B3 | 250-310 | 600 | 105 | 315 | 245 | 260 | 128 | M8 | 6.5 | |
| LC-411B900-B3 | 500 | 900 | 165 | 445 | 325 | 340 | 150 | M8 | 6.5 | |
| LC-411B1000-B3 | 560 | 1000 | 165 | 445 | 325 | 340 | 150 | M8 | 6.5 | |
| LC-411B1600-B3 | 900 | 1600 | 245 | 580 | 330 | 350 | 180 | M12 | 8.5 | |
